• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159785

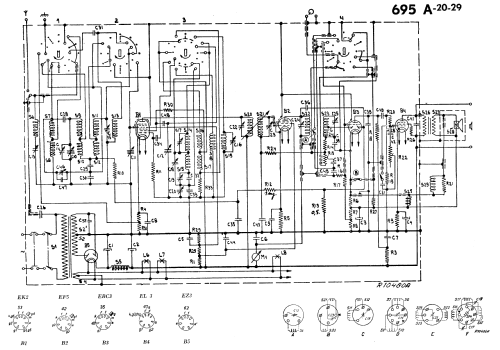

Click on the schematic thumbnail to request the schematic as a free document.

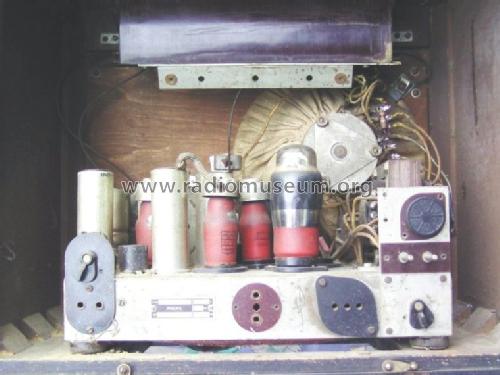

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF5 EBC3 EL3 EZ3

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 695A -20 - Philips Belgium Belgien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 385 x 460 x 280 mm / 15.2 x 18.1 x 11 inch

• Notes

• Klappskala.

  ---

  Uitklapbare afstemschaal.

  ---

  Echelle de syntonisation abattante.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
