- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 7341
-
- Brand: Deutsche Philips-Ges.

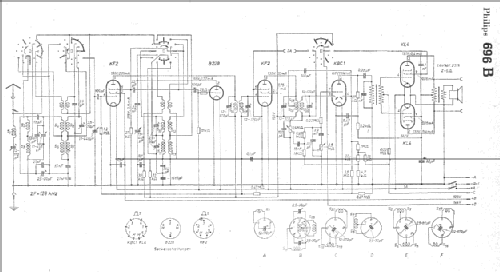

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 120 & 144 & -8 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 696B - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Notes
-
KC1 oder B228
This radio needs a "C" battery of 8 volt to bias the g1 grid of the tubes.
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + FS-Bestückungstabellen
- Literature/Schematics (1)
- -- Original-techn. papers.
