• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1946 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 344975

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• CF50 CF50 EF6 EBC3 4689 1805 4378

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

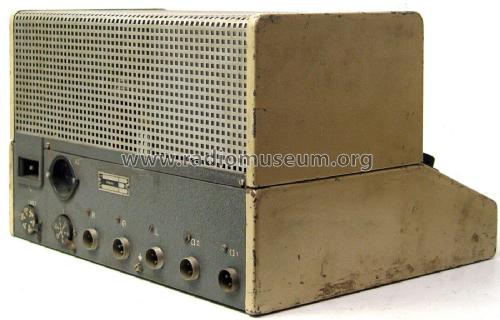

• Model: 6 Watt Mischverstärker 2857 - Philips; Eindhoven tubes

• Shape
• Tablemodel, slant panel.

• Notes

• PA amplifier with 5 inputs: Mic-1, Mic-2, Phono, L, R.

  Siehe auch Philips 2843.

• Mentioned in
• - - Manufacturers Literature (Service-Anleitung)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
