• Year
  • 1936 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96139

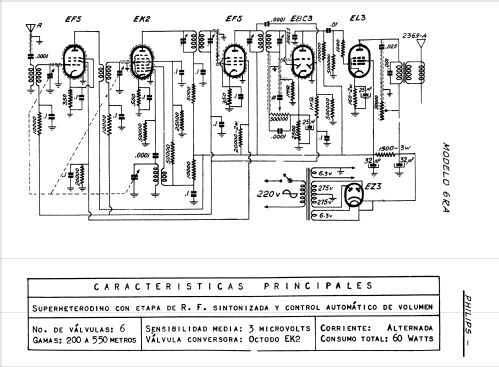

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 175 kHz
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Ø 23 cm = 9.1 inch
  • from Radiomuseum.org
  • Model: 6RA - Philips Argentina, FAPESA,
  • Mentioned in
  • Manual de Circuitos PHILIPS S.A. (Sud Amerika)
