717A -47 asymmetrical case
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1940 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 282052
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
Ivan Badzhakov's collection
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: 717A -47 [asymmetrical case] - Philips; Eindhoven tubes
- Shape
- Tablemodel with Push Buttons.
- Notes
-

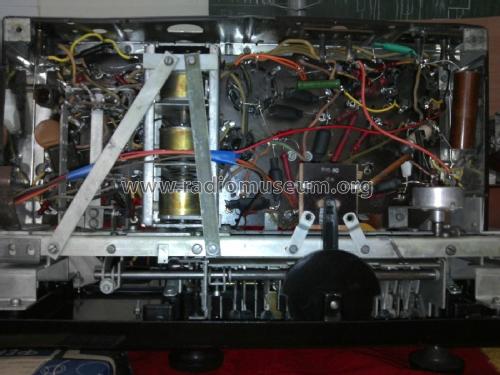

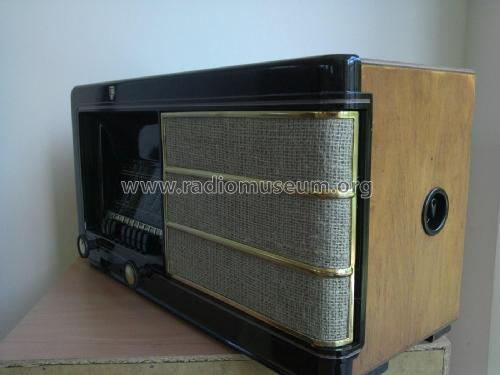

Wooden cabinet with bakelite front panel. Bakelite chassis.
This model was made in the Netherlands and later also in Germany, using the same chassis but a different cabinet, see 717A -47.
- Author
- Model page created by Vladimir Dinev. See "Data change" for further contributors.
