- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 284176
- Number of Tubes
- 8
- Conflicting model year with tube data.
- The model date contradicts tube dates. [ ECH3 (1939) EM4 (1939)]
- Main principle
- Superhet with RF-stage; ZF/IF 473 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 30 cm = 11.8 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 722A -19 - Philips; Eindhoven tubes
- Shape

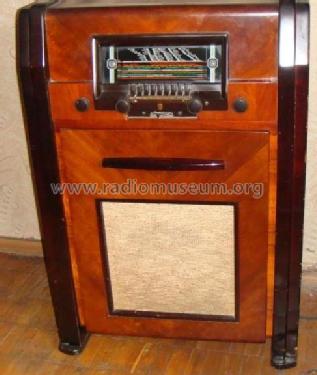

- Console with Push Buttons.
- Dimensions (WHD)
- 680 x 980 x 440 mm / 26.8 x 38.6 x 17.3 inch
- Notes
-
Record changer = RC6
Radio chassis = 895X, with some modifications
Speaker = 9672 (Z = 7 ohms)See model 722A for documentation.
The original service documentation has the year 1939 printed on it, while the (probably later) Philips service sheet puts the model into the season 1938/1939. 1938 is probably too early.
