• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100833

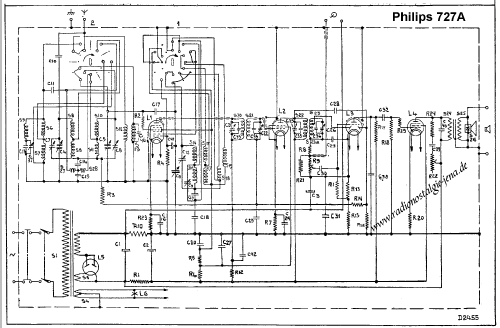

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• FC4 VP4B TDD4 PenA4 1821

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 727A - Philips Electrical, Lamps,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 19.875 x 12.625 x 7.125 inch / 505 x 321 x 181 mm

• Notes
• Radio mit 3 Chassis

• Net weight (2.2 lb = 1 kg)
• 22 lb (22 lb 0 oz) / 9.988 kg

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• - - Manufacturers Literature
