- Country
- Great Britain (UK)
- Manufacturer / Brand
- Philips Electrical, Lamps, Industrial - Miniwatt; London
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 117812
Advertisement 1939
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 735A - Philips Electrical, Lamps,

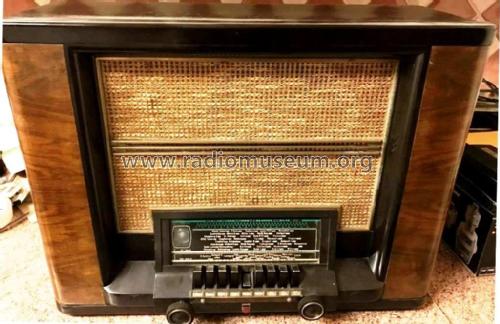

- Shape
- Tablemodel with Push Buttons.
- Notes

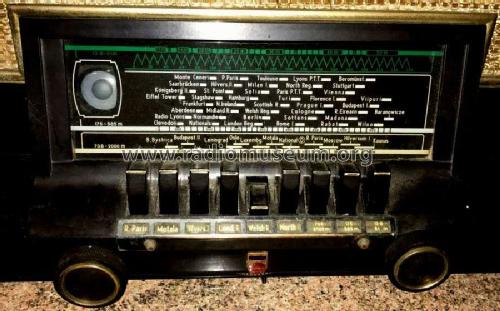

- Nine push buttons for three pre-set MW radio stations, three pre-set MW or LW radio stations, and three for waveband changing. A similar chassis is fitted in the Philips 711A radiogram.
- Price in first year of sale
- 14.50 £
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (438)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
