• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195149

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• FC4 VP4B TDD4 Pen4DD TV4 1821

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Direct Current supply (DC) / 100-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

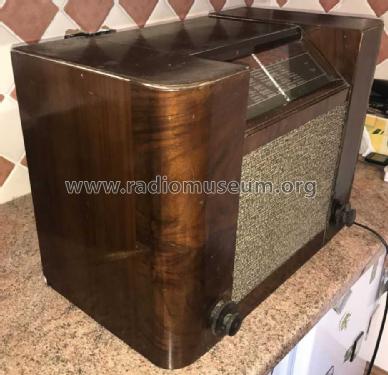

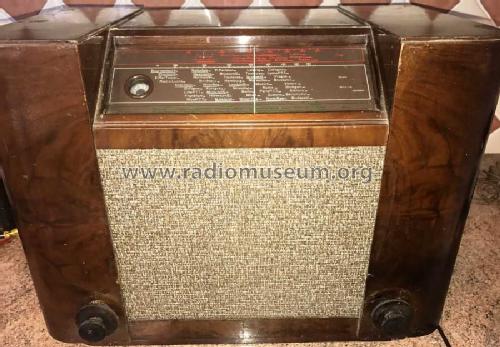

• Model: 747AX - Philips Electrical, Lamps,

• Shape
• Tablemodel, low profile (big size).

• Notes
• Same as the Philips 747A model but is powered from DC mains using a Philips 7860C (100-145v DC) or 7861C (200-245v DC) vibrator converter unit.

• Literature/Schematics (1)
• Trader sheet 601

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
