750U-14

Philips akc. spol., Praha-Hloubetin

Data
Forum
Pictures
Collections

  • Year
  • 1937/1938 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 353888

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110; 125; 145; 200; 220; 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

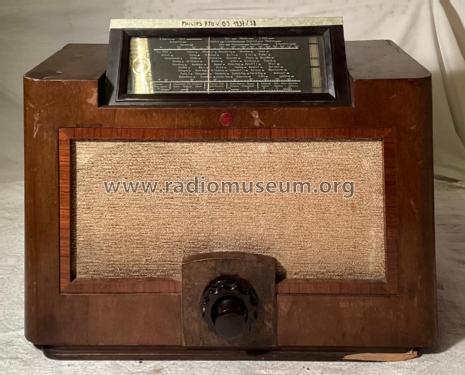

  • Model: 750U-14 - Philips akc. spol., Praha-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 540 x 355 x 275 mm / 21.3 x 14 x 10.8 inch
  • Notes

  • Wie Philips 750A-14, allerdings zusätzlich mit Vibrator (Zerhacker) für Betrieb an Gleich- und Wechselstrom.

  • Author
  • Model page created by Simon Peter Aichner. See "Data change" for further contributors.
