• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7151

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 EF9 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

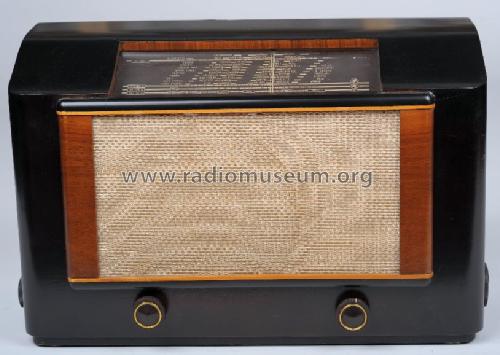

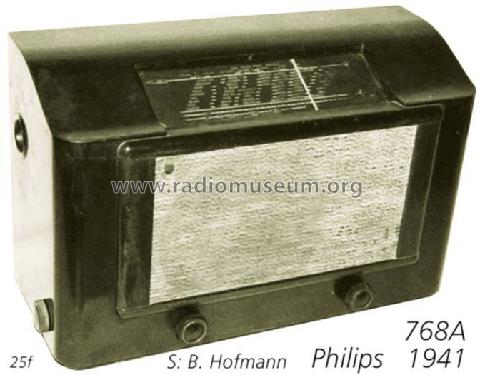

• Model: 768A [mit Außenkontakt-8er Röhren] - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 320 x 210 mm / 19.7 x 12.6 x 8.3 inch

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
