• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1962/1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 216204

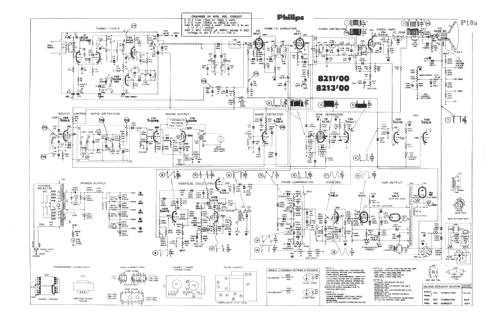

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6ES8 6HG8 6EH7 6EJ7 6DX8 6BL8 6GW8 6CS6 12AU7 6GV8 6BL8 6CM5 6AL3 1S2 AW59-90

• Number of Transistors

• Semiconductors
• OA70 or. OA74 or. OA80 or. OA90 OA70 or. OA74 or. OA80 or. OA90 OA74 or. OA81 or. OA91 OA79 OA79 OA81 or. OA91 OA81 or. OA91 OA210 or. 1N1763 OA210 or. 1N1763

• Main principle
• Superhet with RF-stage; ZF/IF 36500/31000 kHz; 2 AF stage(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 200; 220; 240; 255 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Special 23LT/8211 /00 Ch= Series 8 - Philips Australia

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 26.5 x 33 x 16.5 inch / 673 x 838 x 419 mm

• Notes

• Philips Model 8211 Special Manual Lowboy and Model 7211 Super F. Manual Lowboy

  A 23" lowboy TV receiver, timber cabinet on legs. Finished on maple, walnut or rosewood.
  In two distinct models (8211 illustrated), having 110° aluminised picture tube. Common features include 300 ohms aerial input, printed coil, cascode turret tuner (Type NT3009), 13 channels, using frame-grid mixer valve 6HG8, DC coupling to picture tube, noise gated, delayed A.G.C., noise gated sync. separator protection, Stabilised E.H.T., vertical and horizontal scanning circuits are employed. Printed wired circuitry on a vertical swing-out chassis provides easy servicing.

  Some features not common to both receivers include, the use of 6 VDR's in the Super F. model and 5 VDR's in the Special model and employment of dynamic focusing on the Super F. model.

  Speaker: 7" x 5" side mounted. (MINGAY'S PRICE SERVICE)

  Cabinet finishes available in Maple, Walnut & Rose Mahogany. Height include legs.

  See also earlier version, model Special 23LT8/211S (8211) Ch= Series 8

• Price in first year of sale
• 177.45 AUS £

• Mentioned in
• Mingay's Price Service (Aug 1962 & Feb 1963.)

• Literature/Schematics (1)
• -- Original-techn. papers. (Philips Service Notes, August 1962.)

• Literature/Schematics (2)
• J.R. Publications Television Service Handbook (L.J. Series Vol. 2, 1967, Page P18a.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
