• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1935 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230244

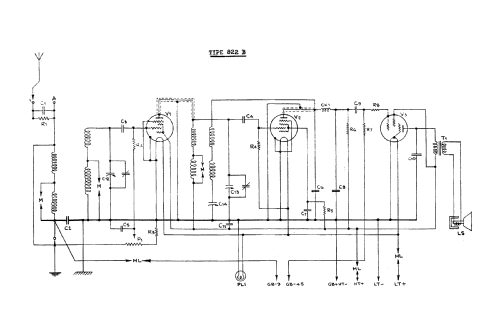

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• VP2 SP2 PM22A

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 135 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 822B - Philips Electrical, Lamps,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jean-Louis HEYD. See "Data change" for further contributors.

• Other Models

• Here you find 426 models, 302 with images and 285 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
