- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 13236

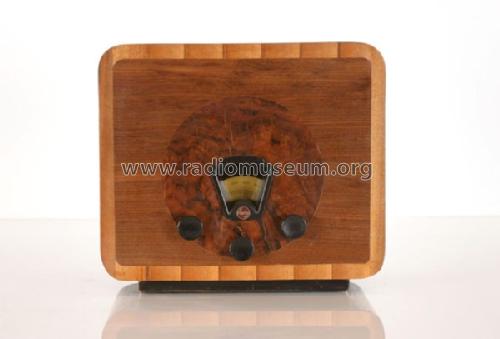

From an auction catalogue.

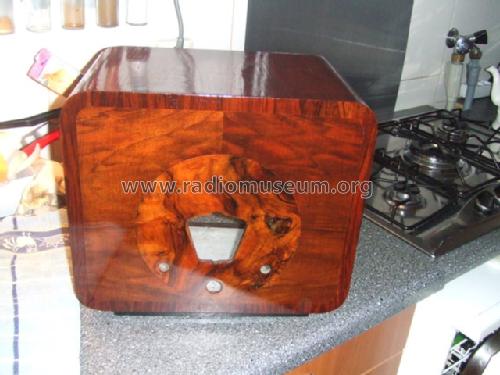

This cabinet was probably repaired.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: 826A - Philips; Eindhoven tubes
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 353 x 310 x 220 mm / 13.9 x 12.2 x 8.7 inch
- Notes

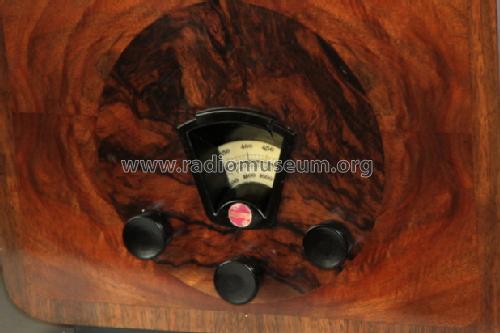

- Besticht durch das andere, kreisförmige Holz, das die Bedienung und Anzeige umrandet. Evtl. auch angeblich mit F443H (statt E443H) bestückt - Druckfehler? Das gleiche Chassis kommt im Philips 836A mit Lautsprecher vor (Hochformat).
- Net weight (2.2 lb = 1 kg)
- 7.4 kg / 16 lb 4.8 oz (16.3 lb)
- Price in first year of sale
- 86.00 Hfl
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
