- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 309968
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 20 cm = 7.9 inch
- Power out
- 2 W (4 W max.)
- Material
- Wooden case
- from Radiomuseum.org

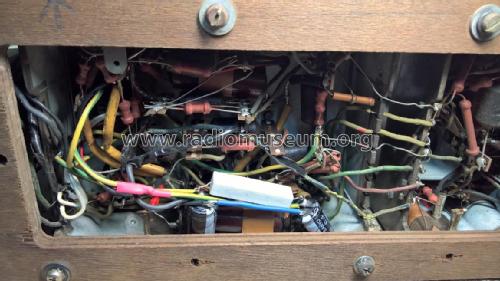

- Model: 842A -47 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 590 x 360 x 240 mm / 23.2 x 14.2 x 9.4 inch
- Notes
-
See also Philips 842A made by Philips Svenska AB.
- Net weight (2.2 lb = 1 kg)
- 12.5 kg / 27 lb 8.5 oz (27.533 lb)
- Author
- Model page created by Matthew Xenakis. See "Data change" for further contributors.
