• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7226

• • Brand: Deutsche Philips-Ges.

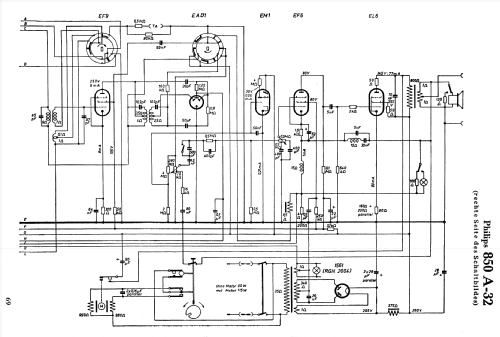

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF8 EK3 EF9 EAB1 EM1 EF6 EL6 1561

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26 cm = 10.2 inch

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 850A-32 - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 670 x 590 x 310 mm / 26.4 x 23.2 x 12.2 inch

• Notes
• • Motorabstimmung, 12 programmierbare Drucktasten, 2 Tasten für UP/DOWN-abstimmung.
  • Geräuschlose abstimmung.
  • Kontrastexpansion.
  • Akustische linse.

  ---



  • Motortuning: 12 programmable push buttons, 2 buttons for up/down tuning.
  • Silent tuning.
  • Contrast expansion (audio expander).
  • Acoustic lens.



• Net weight (2.2 lb = 1 kg)
• 26.750 kg / 58 lb 14.7 oz (58.921 lb)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 2542 models, 2254 with images and 1564 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
