• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241341

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• TBA570 MM5387

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 3 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.2 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

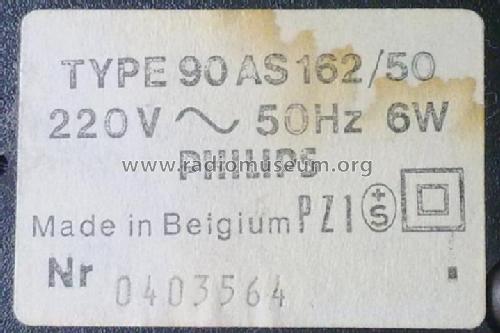

• Model: Radio-Réveil 90AS162 /50 - Philips Belgium Belgien

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 210 x 85 x 140 mm / 8.3 x 3.3 x 5.5 inch

• Notes

• Radio PO/GO avec IC : TBA570A

  Horloge à LED rouge et Circuit intégré : MM5387
