• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80342

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 1,5 (AA) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

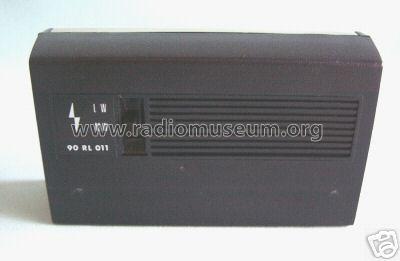

• Model: 90RL011 - Philips; Eindhoven tubes

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 125 x 70 x 34 mm / 4.9 x 2.8 x 1.3 inch

• Notes
• Treiber- und Ausgangs-Gegentakttrafo.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• -- Collector info (Sammler)
