- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1976 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 133077
Speaker

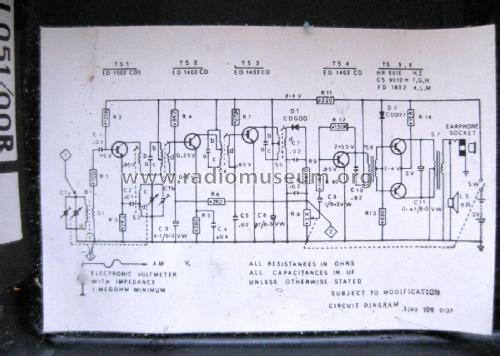

Scheme (inside the receiver)
Printed circuit
Serial number

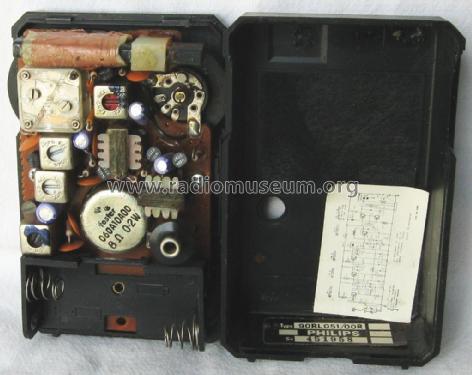

Inside
IF information (inside battery compartment)
Front
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 90RL051 - Philips; Eindhoven tubes
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 65 x 110 x 37 mm / 2.6 x 4.3 x 1.5 inch
- Source of data
- - - Data from my own collection
- Author
- Model page created by Ervé Leclercq. See "Data change" for further contributors.
