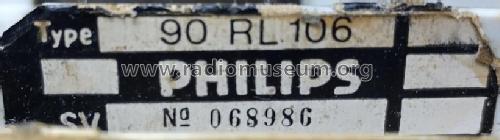

90RL106

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1972 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 122944

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 3× 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.35 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 90RL106 - Philips; Eindhoven tubes
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 145 x 82 x 38 mm / 5.7 x 3.2 x 1.5 inch
  • Net weight (2.2 lb = 1 kg)
  • 0.2 kg / 0 lb 7 oz (0.441 lb)
