• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1975–1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340923

• Number of Transistors
• 10

• Semiconductors
• BF494 BF494 BF494 BF494 BF494 BC548 BC548 BC548 BC328 BC338 BA216 BA216 BA216 BA216 BA216 AA119 AA119 AA119

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

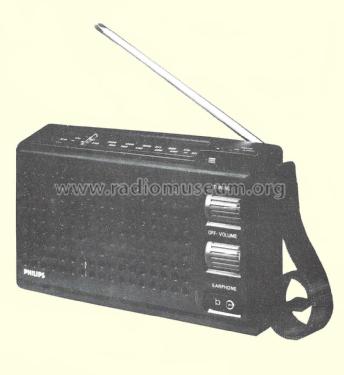

• Model: 90RL150 /45 - Philips Australia

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 175 x 103 x 48 inch / 4445 x 2616 x 1219 mm

• Notes

• MW/FM battery personal portable with carrying case.

  Australian model.

  See also other versions:
  90RL150 /00
  90RL150 /01
  90RL150 /15
  90RL150 /22
  90RL150 /22R

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 21.50 AUS $

• Mentioned in
• Mingay's Price Service (Feb 1976 to Aug 1977.)

• Literature/Schematics (1)
• -- Original-techn. papers. (90RL250 /01 /45 supplement in conjuction with 90RL250 /00 /01 /15 /22 manual.)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
