- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1972 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 341171

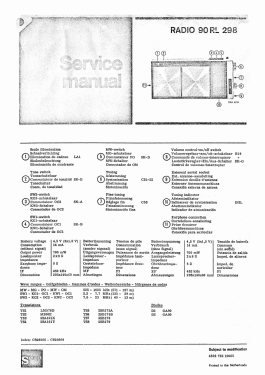

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 3 x 1.5 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 0.7 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 90RL298 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 298 x 140 x 60 mm / 11.7 x 5.5 x 2.4 inch
- Notes
-
Tuning range:
MW 525~1605 kHz
SW1 2.2~7.7 MHz
SW2 7.5~23 MHz
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
