• Year
  • 1974 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 208512

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 452 or 460/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220 / 4x1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

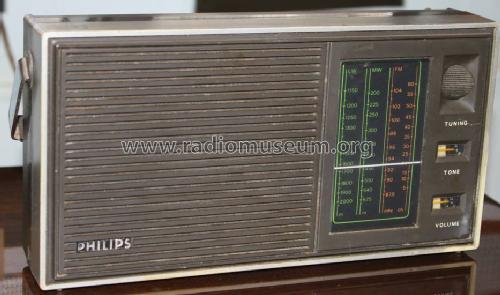

  • Model: 90RL301 /00 /22 - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Model /00, IF= 452 kHz. Model /22, IF= 460 kHz.
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Service manual)
  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
