• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239665

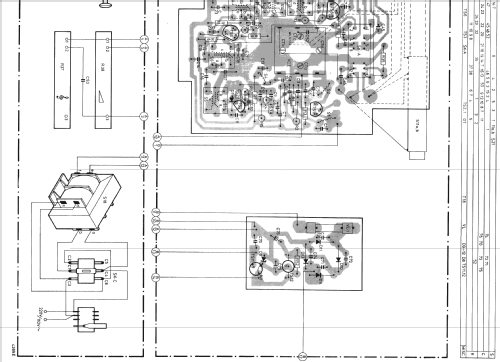

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BF494 BC548 BC558 AC187 AC188 M3016 AC187 AA119 BA148 BA216 BZX79

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 90RL311 /60 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Wave range:
  LW: 150 - 270 kHz.
  MW: 520 - 1605 kHz.
  FM: 87,5 - 104 MHz.

  One semiconductor per type listed.
