90RL414 /22 R

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1974 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157349

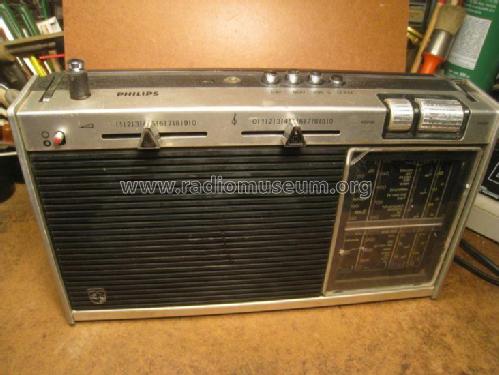

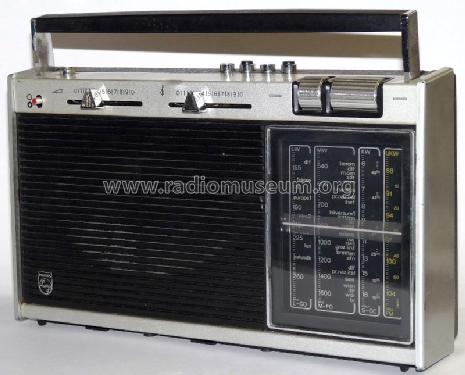

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

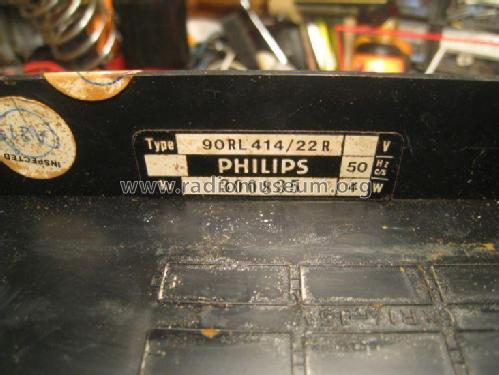

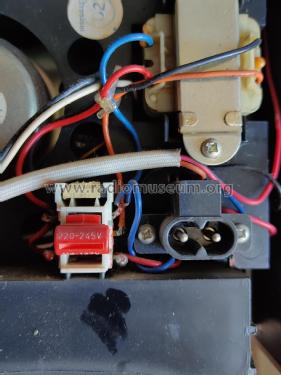

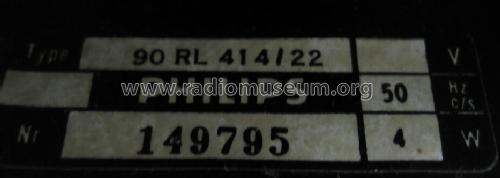

• Power type and voltage
• Line / Batteries (any type) / 117; 220-245 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 90RL414 /22 R - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 175 x 80 mm / 11.8 x 6.9 x 3.1 inch

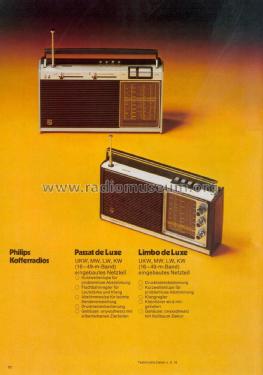

• Notes

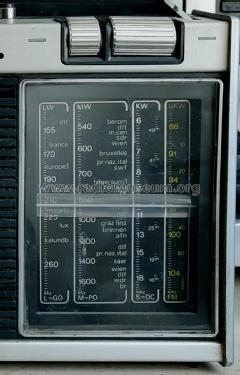

• Mit Kurzwellen-Lupe. Linear-Skala (MW-Bereich mit Ländernamen), Tonbandanschluß über 5 pol Din Buchse, Kopfhöreranschluß über Klinkenbuchse 3,5 mm.

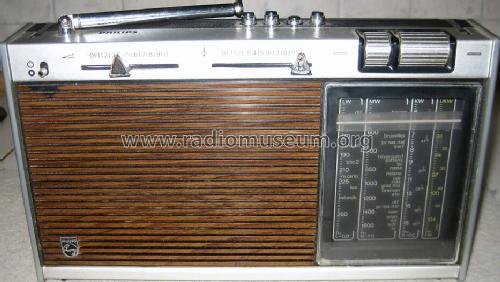

  Front in schwarz und Holzoptik (Nussbaum-Imitat) erhältlich.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

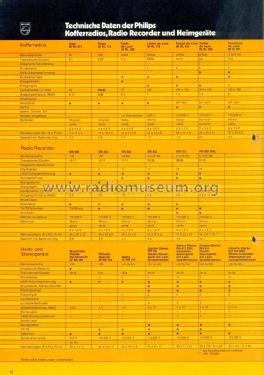

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Klemens Rhode. See "Data change" for further contributors.
