• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 100436

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC83 ECC83 EL86 EL86 DM70 EZ81

• Number of Transistors

• Semiconductors
• OA85

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

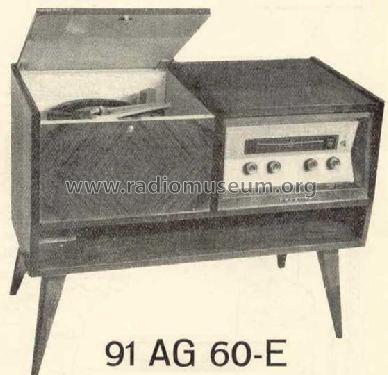

• Model: 91AG60-E - Philips Ibérica, COPRESA,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 831 x 656 x 390 mm / 32.7 x 25.8 x 15.4 inch

• Notes

• Record-Changer.

  En anuncio de junio de 1960 en La Vanguardia Española aparece con precio antes y después de rebaja como 22.917,50 y 16.369,65 pesetas (1€= 166,396 pesetas) respectivamente.

• Price in first year of sale
• 22,917.50 ESP

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
