• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181860

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

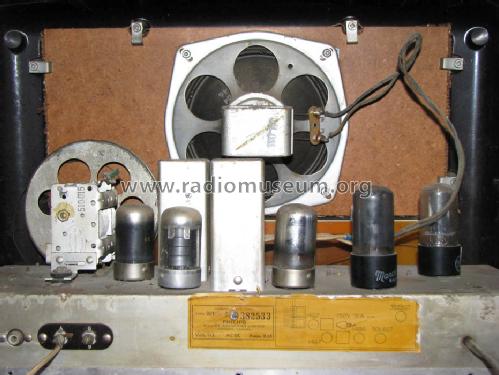

• 14Q7 14A7 14B6 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• from Radiomuseum.org

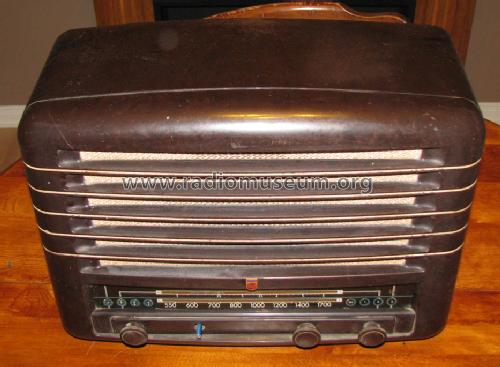

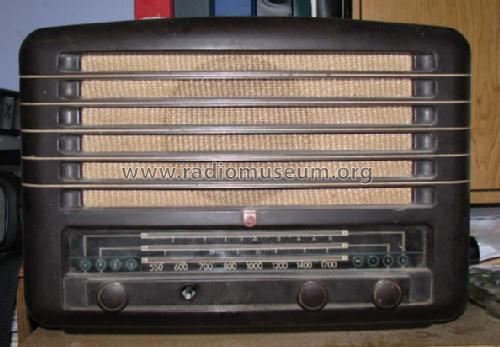

• Model: 921 - Philips Canada

• Notes
• Canada Supplements.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Supplements philips page 61 to 62

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
