962
Philips Canada
- Country
- Canada
- Manufacturer / Brand
- Philips Canada
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 181877
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 2.5 W (5 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 962 - Philips Canada
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Philips model 962 is a 5-tube console radio with built in record changer. Covers standard broadcast, 1.7 to 5.5 MHz and 5.5 to 18.1 MHz shortwave. Same chassis as the Philips model 924.
For 25 or 60 Hz depending on nameplate rating.
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)

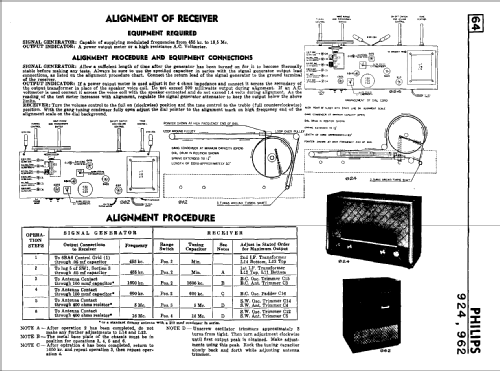

- Canada Supplements philips page 63 to 64
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
