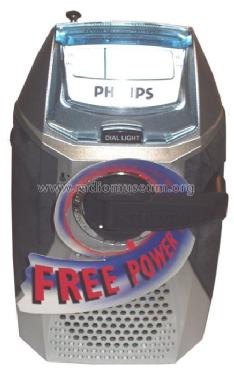

Portable freeplay Kurbelradio AE1000 /00 /01 /11 /17

Philips Radios - Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1999–2004 ?
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 103946
    • Brand: Deutsche Philips-Ges.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Solar- and/or muscle driven, also addl. power jack possible / NiMH: 2 x 1.2 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
  • Power out
  • 0.1 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable freeplay Kurbelradio AE1000 /00 /01 /11 /17 - Philips Radios - Deutschland
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 90 x 150 x 70 mm / 3.5 x 5.9 x 2.8 inch
  • Notes

  • Free-powered-Radio AE1000
    Kurbelradio mit Akkuspeicherung.

    • integrierter Akku (2x1,2 Volt NiMH)
    • 1 Minute Kurbeln reicht für 30 Minuten Betrieb
    • zusätzlich Batteriebetrieb möglich (2x AA)
    • Skalenbeleuchtung
    • Teleskopantenne

    Ausführungen:
    /00 /01 /11 FM 87.5 - 108 MHz / MW 525 - 1606.5 kHz
    /04 /14      FM 87.5 - 108 MHz / LW  150 - 258 kHz
    /17            FM 87.5 - 108 MHz / AM  530 - 1710 kHz

    'Made in China'

  • Net weight (2.2 lb = 1 kg)
  • 0.350 kg / 0 lb 12.3 oz (0.771 lb)
  • Price in first year of sale
  • 69.00 DM
  • Mentioned in
  • -- Original-techn. papers.
  Bedienungsanleitung deutsch 1153 KB
