• Country
• Hong Kong

• Manufacturer / Brand
• Philips Hong Kong

• Year
• 1989 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149480

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

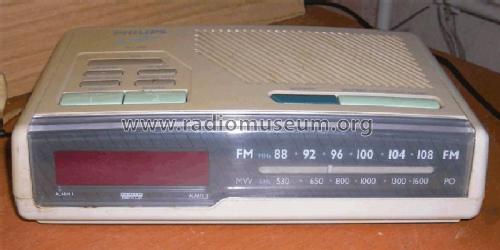

• Model: Clock Radio AJ 3280 - Philips Hong Kong

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 215 x 60 x 140 mm / 8.5 x 2.4 x 5.5 inch

• Notes

• 9 V dry battery for timer memory.

  Not to be confused with the 1999 radio clock Philips Magnavox AJ3280.

• Net weight (2.2 lb = 1 kg)
• 0.757 kg / 1 lb 10.7 oz (1.667 lb)

• Price in first year of sale
• 72.00 DM

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
