Concertino AL177-A
Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
- Country
- Argentina
- Manufacturer / Brand
- Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
- Year
- 1937/1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 135717

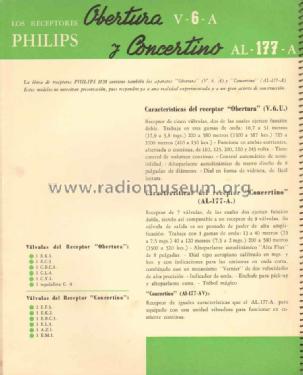

Philips-Catalog 1938
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 475 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Concertino AL177-A - Philips Argentina, FAPESA,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Philips Argentina model AL177-A has a tuning indicator (Magic Eye) EM1.
SW1: 2 - 7.5 MHz
SW2: 7.5 - 23 MHz
BC: 520 - 1500 kHz
- Mentioned in
- - - Manufacturers Literature (Catalog 1938)
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
