- Country
- Argentina
- Manufacturer / Brand
- Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
- Year
- 1950 ??
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 333368
Placa identificatoria

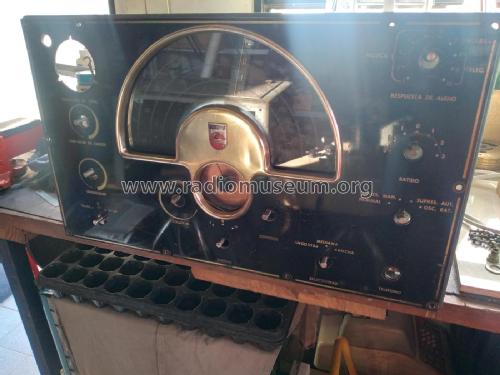

En este estado fue encontrado el equipo
encontrado en esta condicion

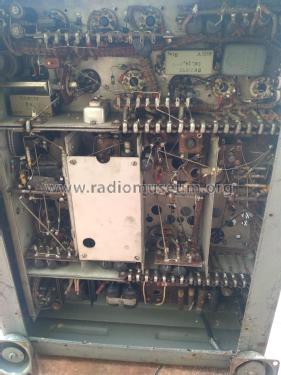

bajo chasis
chasis fuera del gabinete
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 90-245 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: AL695-A - Philips Argentina, FAPESA,
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 450 x 300 x 450 mm / 17.7 x 11.8 x 17.7 inch
- Notes
-
Oscilador de batido, control de sensibilidad y equalizador de audio de 10 posiciones.
Wavebands:
- I 75 - 210 kHz
- II 200 - 550 kHz
- III 520 - 1600 kHz
- Net weight (2.2 lb = 1 kg)
- 28 kg / 61 lb 10.8 oz (61.674 lb)
- Author
- Model page created by Leandro Andres Masutti. See "Data change" for further contributors.
