• Country
• Argentina

• Manufacturer / Brand
• Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181842

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UAF41 UAF41 UL41 UY41 UM4

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AL-A30U - Philips Argentina, FAPESA,

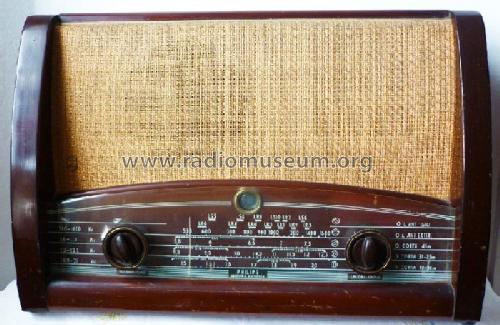

• Shape
• Tablemodel, with any shape - general.

• Notes

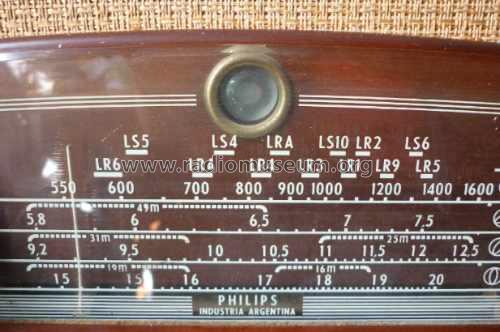

• Dial lamp x 3 type 8097D 19 Volt 97mA. "Magniband" wide band as follows: SW 1: 15 - 19 Mhz. SW 2: 9.2 - 12.5 Mhz. SW 3: 5.8 - 7.5 Mhz. Visual Tuning Indicator Negative feedback Pickup input

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Jorge Mochkovsky. See "Data change" for further contributors.
