Alfiere 4 B4I20A

• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145442

• Picture

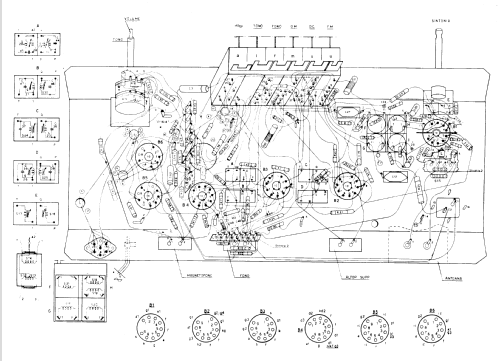

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM87 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Alfiere 4 B4I20A - Philips Italy; Milano MI

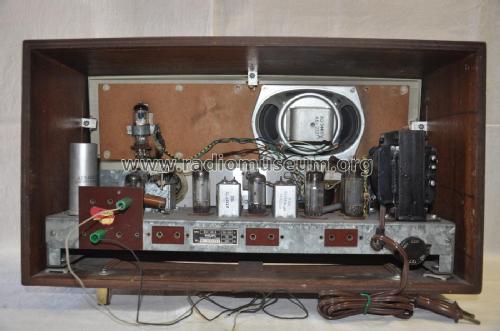

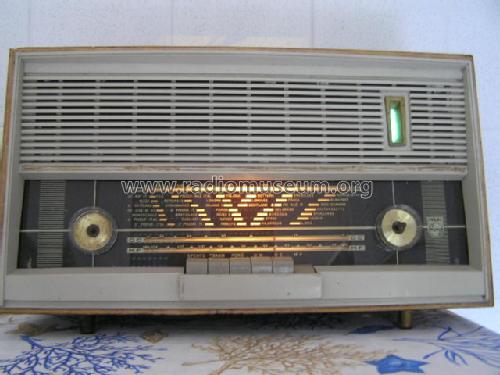

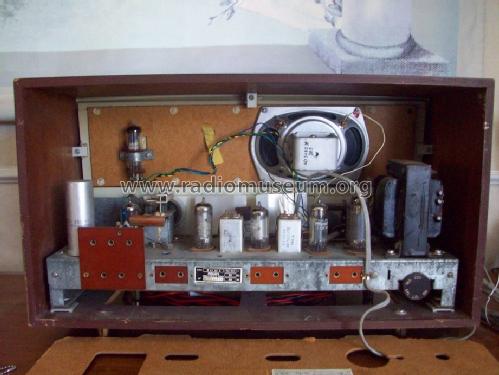

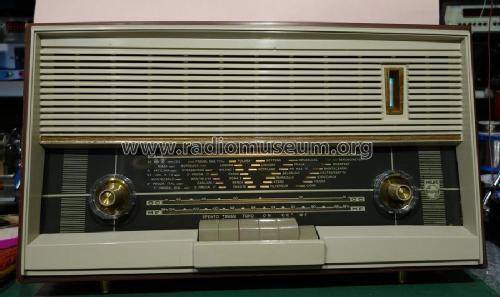

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 470 x 280 x 210 mm / 18.5 x 11 x 8.3 inch

• Notes

• Serie ANIE MF. Mobile in legno con frontale in plastica.

  • Altoparlante ellittico tipo AD3460X;
  • Presa per altoparlante esterno;
  • Presa per registratore.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Giorgio Costa. See "Data change" for further contributors.
