AM FM Stereo Receiver ST1504 /00 /03 /04 /08 /18 /19

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 274648

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (50 W max.)

• Material
• Various materials

• from Radiomuseum.org

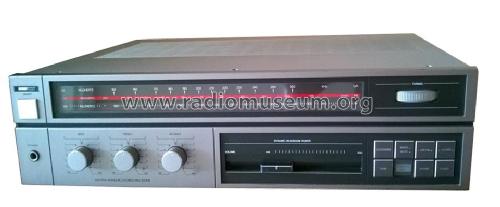

• Model: AM FM Stereo Receiver ST1504 /00 /03 /04 /08 /18 /19 - Philips; Eindhoven tubes

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 104 x 234 mm / 16.5 x 4.1 x 9.2 inch

• Notes

• HiFi-Stereo-Receiver

  8Ω speaker system (4x 8Ω)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.

• Other Models

• Here you find 5269 models, 4413 with images and 3455 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
