Amalfi 23 TI 501A -00
Philips Italy; Milano (MI)
- Country
- Italy
- Manufacturer / Brand
- Philips Italy; Milano (MI)
- Year
- 1965 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 352510

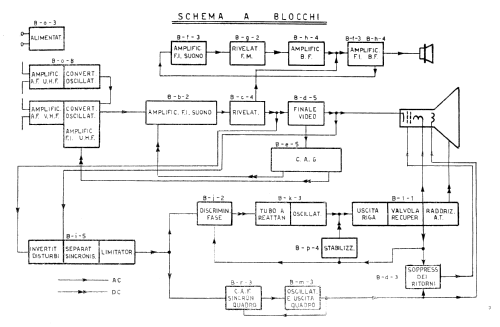

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- PC900 PCF801 PCF201 PCF200 PCL86 PL84 PCL84 PCH200 PCF802 PCL85 PL500 PY81 DY87 A59-11W
- Number of Transistors
- 4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Amalfi 23 TI 501A -00 - Philips Italy; Milano MI
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Televisore in bianco/nero con VHF e UHF. Cinescopio da 23 pollici con deflessione 110°.
Adatto alla ricezione di emittenti funzionanti secondo le norme C.C.I.R.
Altoparlante ad alta impedenza, 800 Ω, senza trasformatore di uscita, collegato direttamente alla seconda griglia della finale audio.
- Mentioned in
- -- Schematic (Schemario TV Philips Service, Edizioni CELI 1972.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
