Annette Automatic de Luxe P6D64T
Category
Broadcast Receiver - or past WW2 Tuner
Brand: Deutsche Philips-Ges.
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Philips Radios - Annette Automatic de Luxe P6D64T (3)
Previous Next
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)

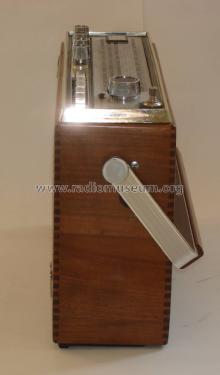

Seltene Ausführung in Vollholz
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)

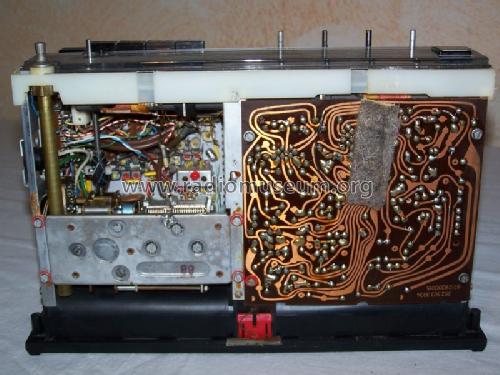

Die Baugruppe Sendesuchlauf mit UKW-Tuner.
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Philips Radios - Annette Automatic de Luxe P6D64T (1)
Previous Next
Click on the schematic thumbnail to request the schematic as a free document.
Main principle
Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits
8 AM circuit(s) 14 FM circuit(s)
Wave bands
Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Power type and voltage
Dry Batteries / 6 × 1,5 Volt
Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
2.5 W (unknown quality)
Material
Special material, described in the notes.
from Radiomuseum.org
Model: Annette Automatic de Luxe P6D64T - Philips Radios - Deutschland
Shape
Portable set > 8 inch (also usable without mains)
Dimensions (WHD)
345 x 215 x 95 mm / 13.6 x 8.5 x 3.7 inch
Notes
Fernbedienbarer elektromotorischer Sendersuchlauf. Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie möglich, dann NF-Ausgangsleistung 5 W. Netzbetrieb mit zusätzlichem Netzteil möglich.
12 Dioden AA119, 4 Stabilisatoren.
Ausführung: Kunststoff mit weich-PVC-Polsterung und Aluminiumfront oder Holzgehäuse.
Net weight (2.2 lb = 1 kg)
4 kg / 8 lb 13 oz (8.811 lb)
