• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76552

• • Brand: Deutsche Philips-Ges.

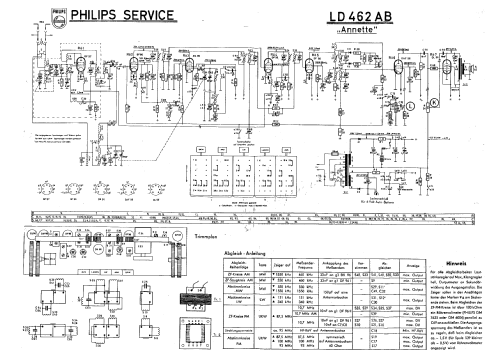

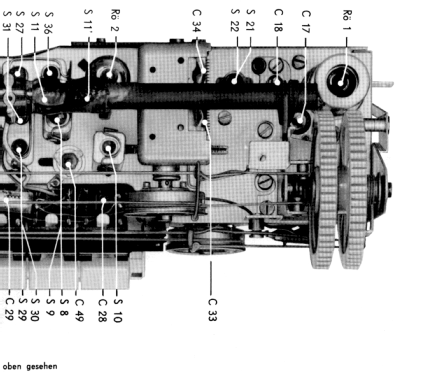

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• DF97 DK96 DF96 DF96 DF96 DAF96 DL96

• Number of Transistors

• Semiconductors
• OA72 OA72

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 125; 145; 220 / 1,5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

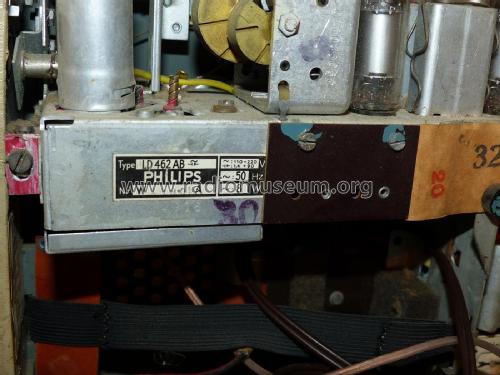

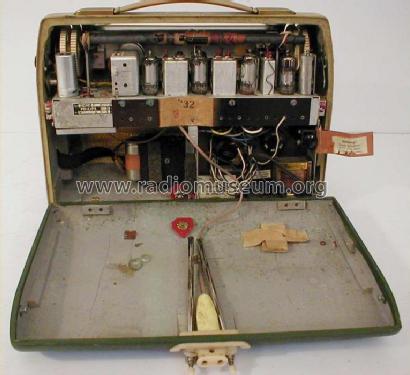

• Model: Annette LD462AB - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 220 x 120 mm / 11.8 x 8.7 x 4.7 inch

• Notes
• Accumulutateurchauffage 1,5V incorporé. Eingebauter Heizakkumulator 1,5V.

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Patrice Zeissloff. See "Data change" for further contributors.
