Anodenspannungsapparat 372 neu
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1927–1930 ?
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 13155
Dutch advert for the 372 battery eliminator

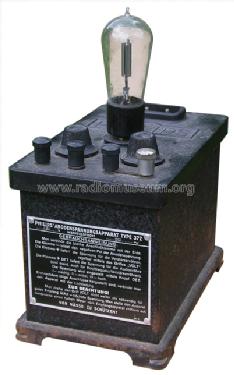

mit Röhre V475
Vista en perspectiva frente
Vista controles y bornera
Etiqueta instrucciones de usa en español
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 373
- Wave bands
- - without
- Details
- Power: B-Battery Eliminator
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- TUBES VISIBLE, material not known.
- from Radiomuseum.org
- Model: Anodenspannungsapparat 372 [neu] - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 120 x 150 x 200 mm / 4.7 x 5.9 x 7.9 inch
- Notes
-
Ausführung mit schwarzem Schrumpflack U max: 200 V, Imax: 30 mA.
We have only given prove for 1928. Therefore the question mark behind 1927-30.
- Net weight (2.2 lb = 1 kg)
- 4.3 kg / 9 lb 7.5 oz (9.471 lb)
- External source of data
- E. Erb 3-907007-36-0
- Mentioned in
- Verbesserung des Radio-Empfanges
- Literature/Schematics (1)
- Molnár János: Anódpótlók, Budapest, 1929.
