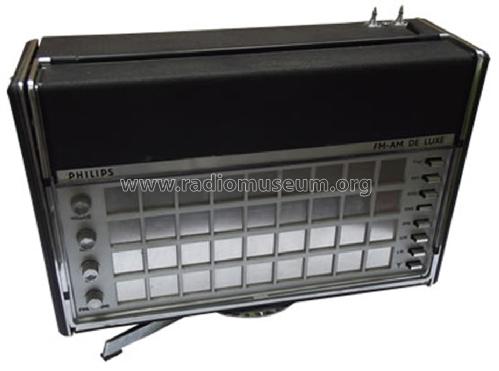

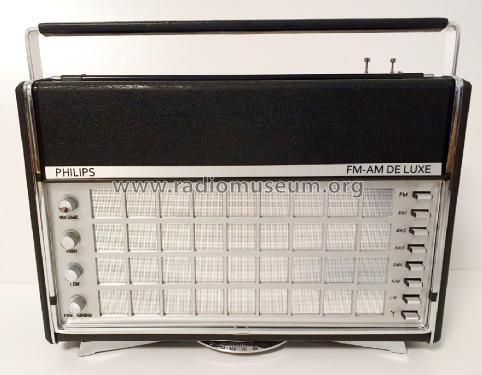

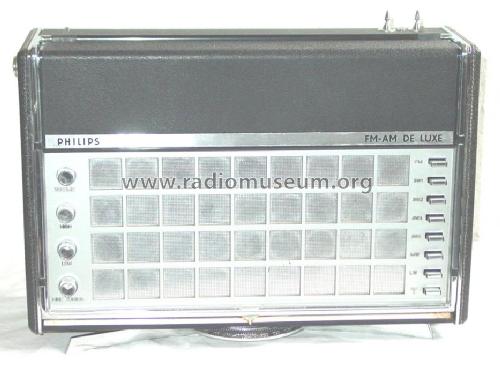

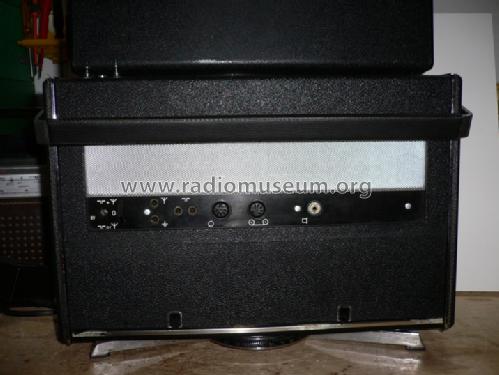

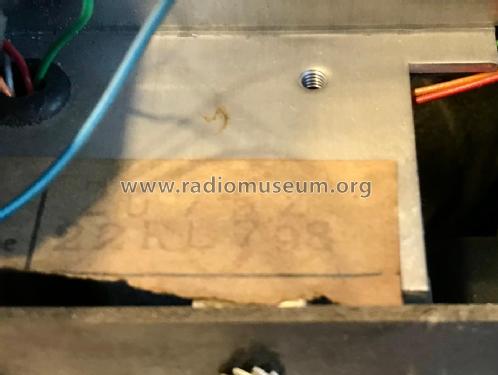

Antoinette Transworld de Luxe 22RL798

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1969–1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6964

• • Brand: Deutsche Philips-Ges.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF121 AF125 AF125 AF125 AF126 AF126 AC126 AC127 AC125 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Antoinette Transworld de Luxe 22RL798 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 370 x 255 x 120 mm / 14.6 x 10 x 4.7 inch

• Notes
• Philips Antoinette Transworld de Luxe 22RL798;

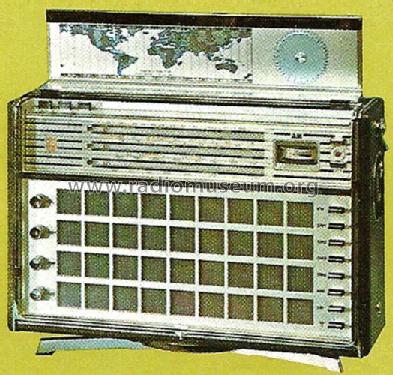

  Gerät auf dem Sockel für Peilzwecke drehbar.
  4 Kurzwellenbereiche, KW-Lupe, erweiterter LW-Bereich.

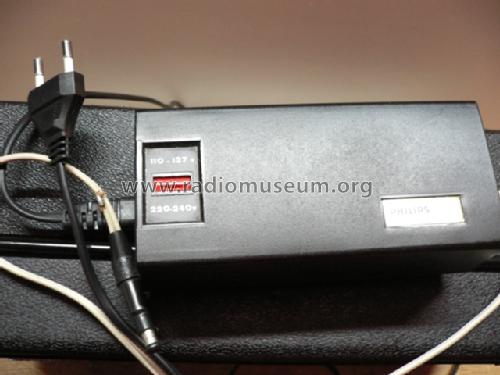

  Netzbetrieb mit zusätzlichem Netzteil möglich.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Source of data
• Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb
