• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96049

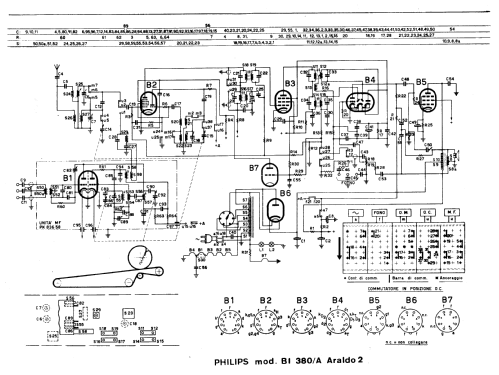

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 DM71 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

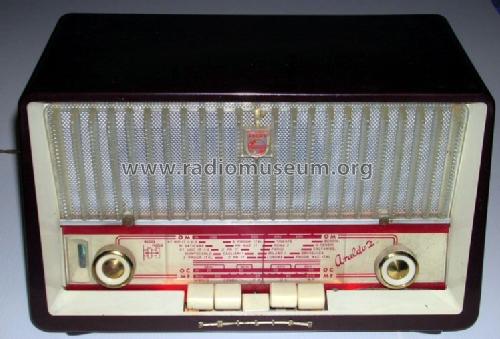

• Model: Araldo 2 BI380A - Philips Italy; Milano MI

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 330 x 190 x 170 mm / 13 x 7.5 x 6.7 inch

• Notes

• Autotrasformatore, telaio sotto tensione di rete!

  Altoparlante ellittico 14 x 8 cm. Diverse varianti di colore.

  Autotrafo, keine Netztrennung !!!

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
