AS230 Electronic Clock Radio 06AS230

Philips do Brasil S.A.

Data

Forum

Pictures

Collections

Country
Brazil

Manufacturer / Brand
Philips do Brasil S.A.

Year
1980 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
333594

Schematics

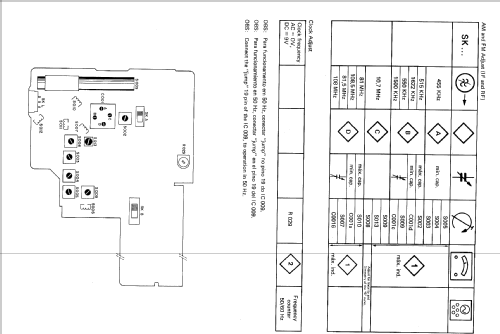

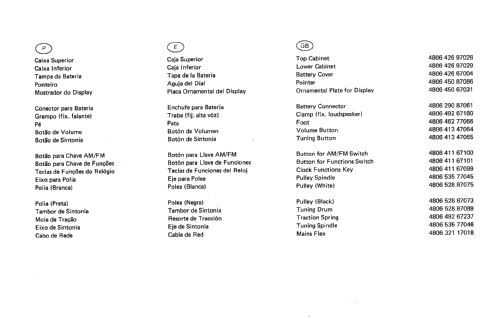

AS230 Electronic Clock Radio 06AS230; Philips do Brasil S. (ID = 2697982) Radio — Philips do Brasil S. AS230 Electronic Clock Radio 06AS230 (3)

AS230 Electronic Clock Radio 06AS230; Philips do Brasil S. (ID = 2697984) Radio — Philips do Brasil S. AS230 Electronic Clock Radio 06AS230 (3)

AS230 Electronic Clock Radio 06AS230; Philips do Brasil S. (ID = 2697985) Radio — Philips do Brasil S. AS230 Electronic Clock Radio 06AS230 (3)

AS230 Electronic Clock Radio 06AS230; Philips do Brasil S. (ID = 2697987) Radio — Philips do Brasil S. AS230 Electronic Clock Radio 06AS230 (3)

AS230 Electronic Clock Radio 06AS230; Philips do Brasil S. (ID = 2697988) Radio — Philips do Brasil S. AS230 Electronic Clock Radio 06AS230 (3)

AS230 Electronic Clock Radio 06AS230; Philips do Brasil S. (ID = 2697989) Radio — Philips do Brasil S. AS230 Electronic Clock Radio 06AS230 (3)

AS230 Electronic Clock Radio 06AS230; Philips do Brasil S. (ID = 2697981) Radio — Philips do Brasil S. AS230 Electronic Clock Radio 06AS230 (2)
Philips service manual

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
6

Semiconductors
BF495 BF495 BC328 BC328 BC558 BC548 LM1868 MM5456 TLR2198 1K60 1N4148 BA317 BAX18 BZX79

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 110; 220 / Backup 6LR61: 1 x 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
0.2 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: AS230 Electronic Clock Radio 06AS230 - Philips do Brasil S.A.

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
210 x 45 x 155 mm / 8.3 x 1.8 x 6.1 inch

Notes
Wavebands:
MW = 520 - 1605 kHz
FM = 81 - 108 MHz (covering TV channels 5 and 6)

Diodes: 6 x 1N4148 , 7 x BA317, 5 x BAX18.

Mentioned in
-- Original-techn. papers.

Author
Model page created by Antonio Rabitti. See "Data change" for further contributors.
