Audio System AS 9300 /48
Philips Malaysia; Petaling Jaya
- Country
- Malaysia
- Manufacturer / Brand
- Philips Malaysia; Petaling Jaya
- Year
- 1992
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 288372
Foto Catalogo Philips
- Number of Transistors
- 39
- Semiconductors
- BC548 2SC1675 BC558 BC338 TEA5570 AN7411 KA2224 AN7149 AN7810 µPC1313 BA4560 HEF4042BP HEF4013B KBU4D
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Audio System AS 9300 /48 - Philips Malaysia; Petaling
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 360 x 365 x 375 mm / 14.2 x 14.4 x 14.8 inch
- Notes
-

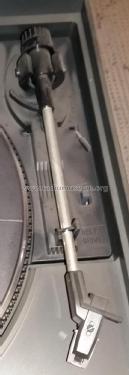

Audio System Midi, analogue tuner, bands MW, LW, FM, sensitivity 100 mV/cm (stereo 46 dB s/r) selectivity in FM 42 dB, Turn Disks 2 speed with automatic return, Double deck cassettes with high speed copy and playback, Power output 2 x 10 W RMS, 2 x 20 W musical, frequency response 50/20000 Hz signal- to-noise ratio »62 dB, stereo separation 38 dB (1 kHz), 3 Bands graphic equalizer, frequency +/- 10 dB in 100, 1000 & 10000 Hz.
Transistors, ICs and diodes listed only once per type.
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
