• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1967/1968

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27203

• • Brand: Deutsche Philips-Ges.

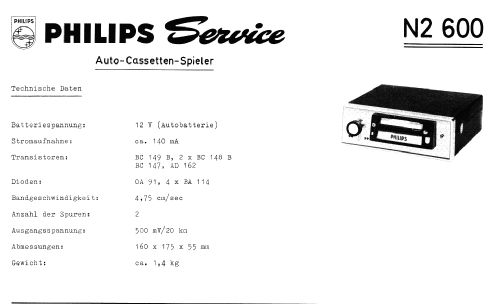

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BC149 BC148 BC147 BC148 AD162 OA91 BA114 BA114 BA114 BA114

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Auto-Cassettenspieler N2600 - Philips Radios - Deutschland

• Dimensions (WHD)
• 160 x 55 x 175 mm / 6.3 x 2.2 x 6.9 inch

• Notes
• Abspielgerät für bespielte Cassetten zum Anschluss an Autosuper
  Übertragungsbereich: 60-10000 Hz.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Price in first year of sale
• 169.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Mentioned in
• Funk-Technik (FT) (9/1968, S. 356 / Beschreibung, Daten, Schema)

• Literature/Schematics (1)
• -- Original-techn. papers.
