Automatic 10
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1970 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 200110
-
- Brand: Deutsche Philips-Ges.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Automatic 10 - Philips Radios - Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 380 x 180 x 330 mm / 15 x 7.1 x 13 inch
- Notes

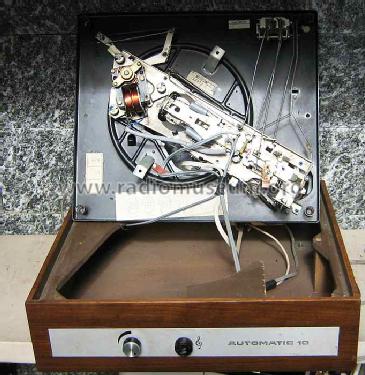

- Automatic 10, vier Geschwindigkeiten, Liftomat, DIN-Buchse für ext. Tonabnehmer, Philips Plattenwechsler-Chassis 22GC036, Gehäuse Nußbaum, Lautsprecher im Deckel montiert.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
