• Country
• Singapore

• Manufacturer / Brand
• Philips, Singapore

• Year
• 1972–1976

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29184

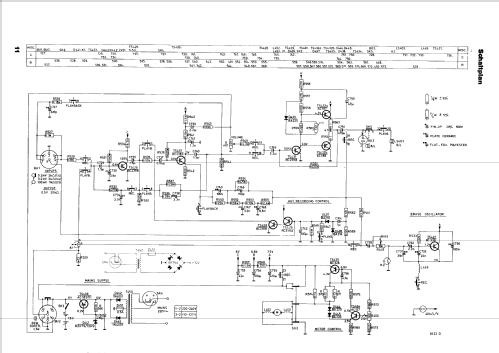

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AC127 AC187 AC187 AC188 BC238 BC238 BC238 BC238 BC239 BC328 BC338 BZX79 BA220 BA216 1N4001 or. BY164

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110-127; 220-240 / 5×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Automatic-Recorder N2221 /00 /01 - Philips, Singapore

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 195 x 65 mm / 9.4 x 7.7 x 2.6 inch

• Notes

• Instrument für Aussteuerung und Batteriekontrolle; automatische Aussteuerung.

  All models /00 found to date have the suffix manually corrected to /01. They have been made in Singapore.

  See also Model N2221 /45 (Type "I" mains lead version)

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973

• Mentioned in
• Handbuch VDRG 1974/1975 (und 1975/76)

• Literature/Schematics (1)
• -- Original-techn. papers.
