• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1967–1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 128692

• • Brand: Deutsche Philips-Ges.

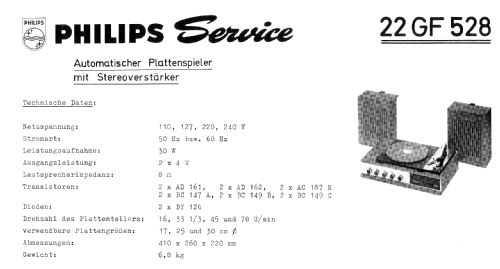

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• AC187 AC187 AD161 AD161 AD162 AD162 BC147 BC147 BC149 BC149 BC149 BC149

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 16.6 cm = 6.5 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Automatisches Stereo-Electrophon 22GF528 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 198 x 263 mm / 16.1 x 7.8 x 10.4 inch

• Notes
• Stereo-Plattenspieler-Heimgerät. 4 Geschwindigkeiten; Kristallsystem GP200 mit Duplo-Nadel 946DS51; Stereo-NF-Verstärker mit 2 Endstufen je 6,5 W.

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Source of data
• Handbuch VDRG 1967/1968

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
