• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1934/1935

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 7432

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF2 EK1 EF2 EB1 EF1 EL1 optional EZ1

• Main principle
• Superhet with RF-stage; ZF/IF 115 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

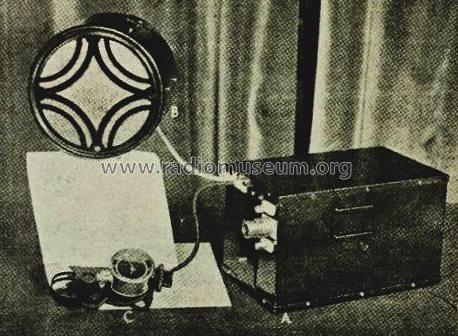

• from Radiomuseum.org
• Model: 241B - Philips Radios - Deutschland

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 320 x 200 x 200 mm / 12.6 x 7.9 x 7.9 inch

• Notes

• Empfangsbereiche:

  • LW = 800 - 1900 m
  • MW = 215 - 560 m

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models
