• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1998

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 291455

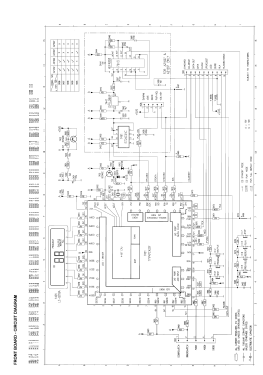

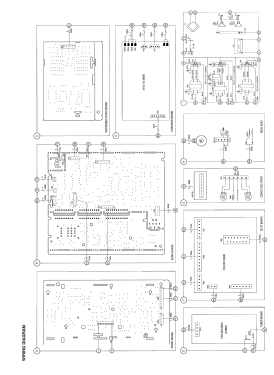

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• AN7318 AN7318 M62475 M65821 BC548 BC547 BC547 BC338 BC338 BC547 BC557 BC327 BC327 BC557 BC547 BC548 BC548 BC558 TEA5711 TA8227 TMP47C422 CD4093 24C01 TDA7073 TDA7073

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes; Remote Control (with wire or wireless)

• Power type and voltage
• Line / Batteries (any type) / 220 / 6x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.8 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: AZ1207/1202 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 470 x 175 x 250 mm / 18.5 x 6.9 x 9.8 inch

• Notes

• Radio portable with CD player and cassette Deck, analog tuner MW, LW, FM stereo, 2x 1,4 W dynamic bass booster, incredible surround, remote control, CD programming, random star and sync/recording with CD, Deck cassettes, LCD lighted display, headphones.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Mentioned in
• - - Manufacturers Literature (Catalogo Philips 98/99, page 93)

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
