AZ 1004

• Country
• People's Republic of China

• Manufacturer / Brand
• Philips 飞利浦; China

• Year
• 2001

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 208498

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

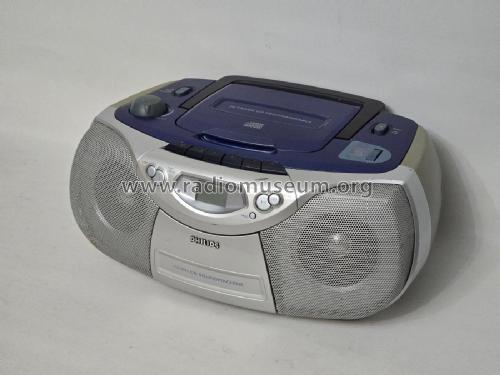

• Model: AZ 1004 - Philips 飞利浦; China

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 360 x 225 x 152 mm / 14.2 x 8.9 x 6 inch

• Notes
• Philips AZ1004 ist ein Radiorecorder mit eingebautem CD-Player.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
